javaWeb三大组件

发表于 | 更新于 | 阅读次数：
本文字数： 13k | 阅读时长 ≈ 23 分钟

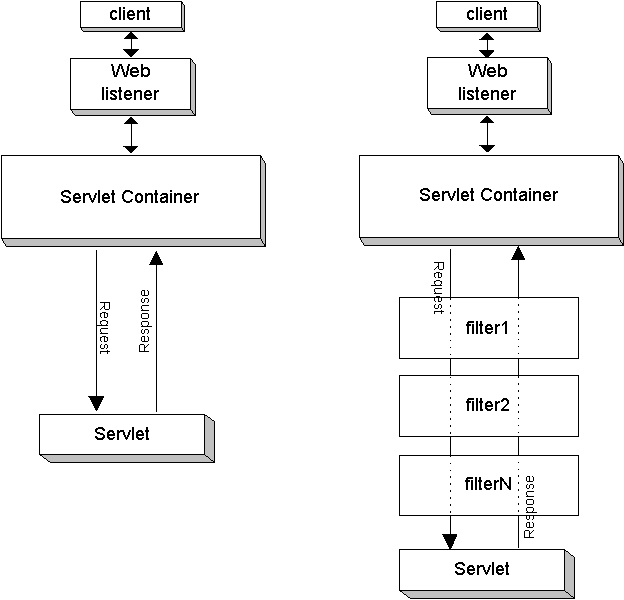

Filter与Listener区别

Servlet Filter用来监听（monitoring）从客户端到servlet的request、response，或者修改request、response，或者鉴权、记录日志

Servlet Listener用来收听web容器的事件，例如session生命周期变化、session属性值变化、Servlet context生命周期变化、Servlet context属性值变化。

Filter is just like a water filter, where incoming (request) and outgoing (response) values will be filtered.
Listener is like listening (trigger) - whenever required, I will be performed.

Difference between Filter and Listener in Servlet (Java EE)

Servlet Filters and Event Listeners

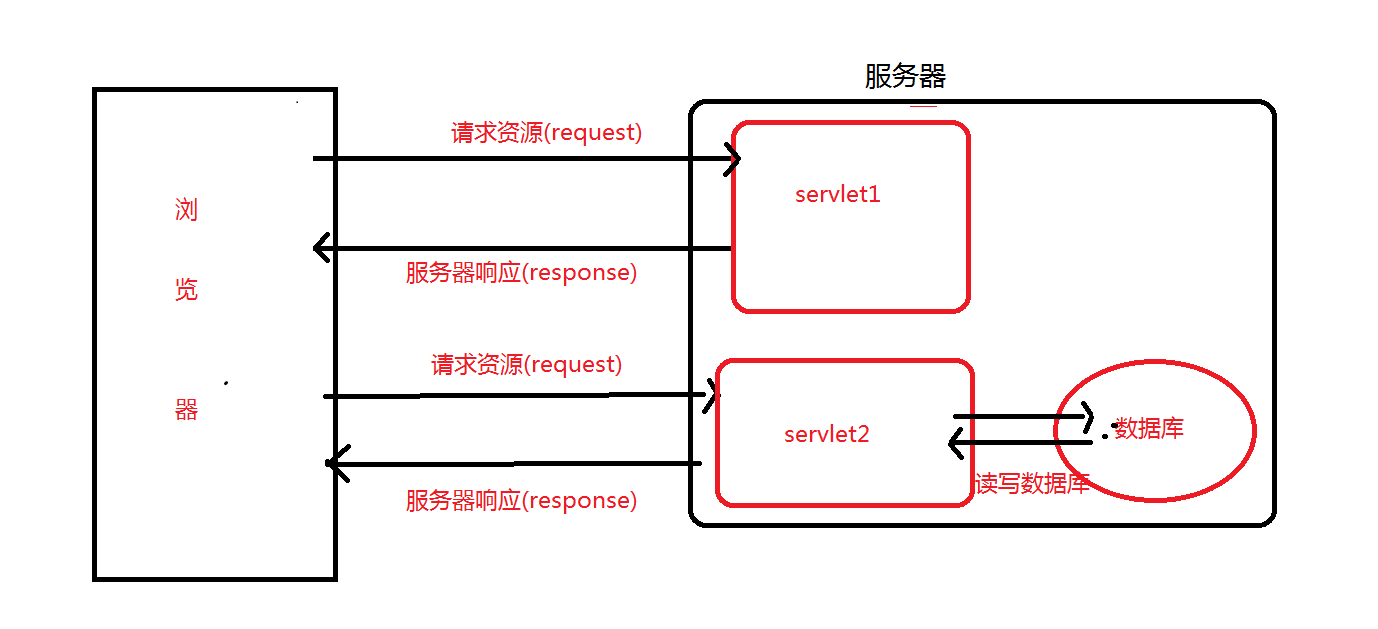

Servlet

Servlet详解

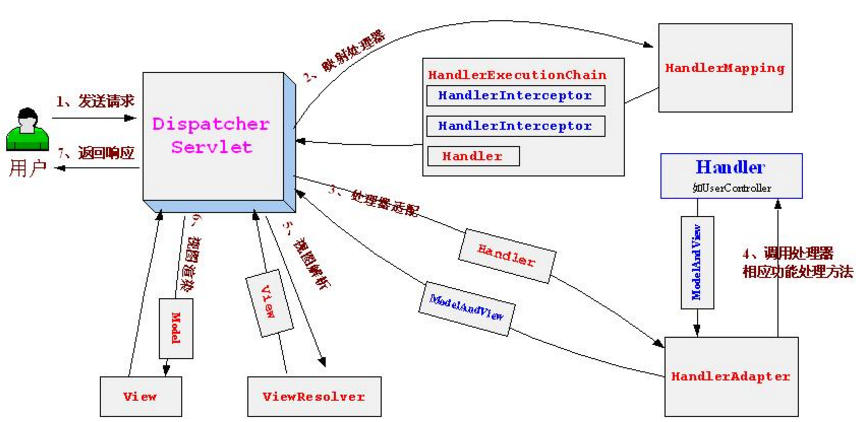

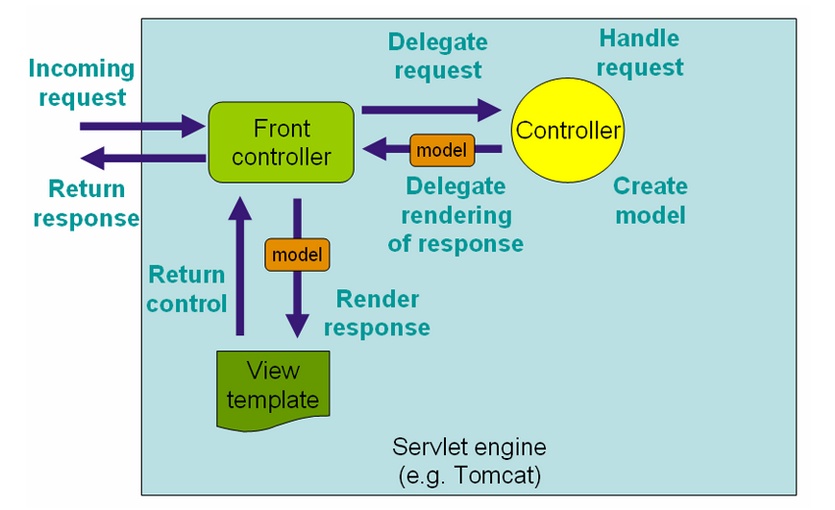

Spring MVC DispatcherServlet

1. 首先用户发送请求——>DispatcherServlet，前端控制器收到请求后自己不进行处理，而是委托给其他的解析器进行处理，作为统一访问点，进行全局的流程控制；
2. DispatcherServlet——>HandlerMapping， HandlerMapping将会把请求映射为HandlerExecutionChain对象（包含一个Handler处理器（页面控制器）对象、多个HandlerInterceptor拦截器）对象，通过这种策略模式，很容易添加新的映射策略；
3. DispatcherServlet——>HandlerAdapter，HandlerAdapter将会把处理器包装为适配器，从而支持多种类型的处理器，即适配器设计模式的应用，从而很容易支持很多类型的处理器；
4. HandlerAdapter——>处理器功能处理方法的调用，HandlerAdapter将会根据适配的结果调用真正的处理器的功能处理方法，完成功能处理；并返回一个ModelAndView对象（包含模型数据、逻辑视图名）；
5. ModelAndView的逻辑视图名——> ViewResolver， ViewResolver将把逻辑视图名解析为具体的View，通过这种策略模式，很容易更换其他视图技术；
6. View——>渲染，View会根据传进来的Model模型数据进行渲染，此处的Model实际是一个Map数据结构，因此很容易支持其他视图技术；
7. 返回控制权给DispatcherServlet，由DispatcherServlet返回响应给用户，到此一个流程结束。

DispatcherServlet请求处理

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
@Override
protected void doService(HttpServletRequest request, HttpServletResponse response) throws Exception {
  if (logger.isDebugEnabled()) {
    String resumed = WebAsyncUtils.getAsyncManager(request).hasConcurrentResult() ? " resumed" : "";
    logger.debug("DispatcherServlet with name '" + getServletName() + "'" + resumed +
                 " processing " + request.getMethod() + " request for [" + getRequestUri(request) + "]");
  }

  // Keep a snapshot of the request attributes in case of an include,
  // to be able to restore the original attributes after the include.
  Map<String, Object> attributesSnapshot = null;
  if (WebUtils.isIncludeRequest(request)) {
    attributesSnapshot = new HashMap<String, Object>();
    Enumeration<?> attrNames = request.getAttributeNames();
    while (attrNames.hasMoreElements()) {
      String attrName = (String) attrNames.nextElement();
      if (this.cleanupAfterInclude || attrName.startsWith("org.springframework.web.servlet")) {
        attributesSnapshot.put(attrName, request.getAttribute(attrName));
      }
    }
  }

  // Make framework objects available to handlers and view objects.
  request.setAttribute(WEB_APPLICATION_CONTEXT_ATTRIBUTE, getWebApplicationContext());
  request.setAttribute(LOCALE_RESOLVER_ATTRIBUTE, this.localeResolver);
  request.setAttribute(THEME_RESOLVER_ATTRIBUTE, this.themeResolver);
  request.setAttribute(THEME_SOURCE_ATTRIBUTE, getThemeSource());

  FlashMap inputFlashMap = this.flashMapManager.retrieveAndUpdate(request, response);
  if (inputFlashMap != null) {
    request.setAttribute(INPUT_FLASH_MAP_ATTRIBUTE, Collections.unmodifiableMap(inputFlashMap));
  }
  request.setAttribute(OUTPUT_FLASH_MAP_ATTRIBUTE, new FlashMap());
  request.setAttribute(FLASH_MAP_MANAGER_ATTRIBUTE, this.flashMapManager);

  try {
    doDispatch(request, response);
  }
  finally {
    if (!WebAsyncUtils.getAsyncManager(request).isConcurrentHandlingStarted()) {
      // Restore the original attribute snapshot, in case of an include.
      if (attributesSnapshot != null) {
        restoreAttributesAfterInclude(request, attributesSnapshot);
      }
    }
  }
}

doDispatch()方法源码：该过程是负责请求的真正处理

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
protected void doDispatch(HttpServletRequest request, HttpServletResponse response) throws Exception {
  HttpServletRequest processedRequest = request;
  HandlerExecutionChain mappedHandler = null;
  boolean multipartRequestParsed = false;

  WebAsyncManager asyncManager = WebAsyncUtils.getAsyncManager(request);

  try {
    ModelAndView mv = null;
    Exception dispatchException = null;

    try {
      // 1. 判断用户的请求是否为文件上传，通过MultipartResolver解析
      processedRequest = checkMultipart(request);
      multipartRequestParsed = (processedRequest != request);

      // 2. 通过HandlerMapping映射处理器和拦截器包装成一个HandlerExecutionChain
      mappedHandler = getHandler(processedRequest);
      if (mappedHandler == null || mappedHandler.getHandler() == null) {
        noHandlerFound(processedRequest, response);
        return;
      }

      // 3. 将处理器包装成相应的适配器
      HandlerAdapter ha = getHandlerAdapter(mappedHandler.getHandler());

      // 省略此处代码

      // 4. 执行处理器相关的拦截器的预处理
      if (!mappedHandler.applyPreHandle(processedRequest, response)) {
        return;
      }

      // 5. 由适配器执行处理器
      mv = ha.handle(processedRequest, response, mappedHandler.getHandler());

      if (asyncManager.isConcurrentHandlingStarted()) {
        return;
      }

      applyDefaultViewName(request, mv);

      // 6. 拦截器后处理
      mappedHandler.applyPostHandle(processedRequest, response, mv);
    }
    catch (Exception ex) {
      dispatchException = ex;
    }

    // 7. 视图渲染
    processDispatchResult(processedRequest, response, mappedHandler, mv, dispatchException);
  }
  // 此处省略部分代码
}
